Product Info
Series
LAMI Revo Series
Product
Revo-Any
Price
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
Download the Catalog

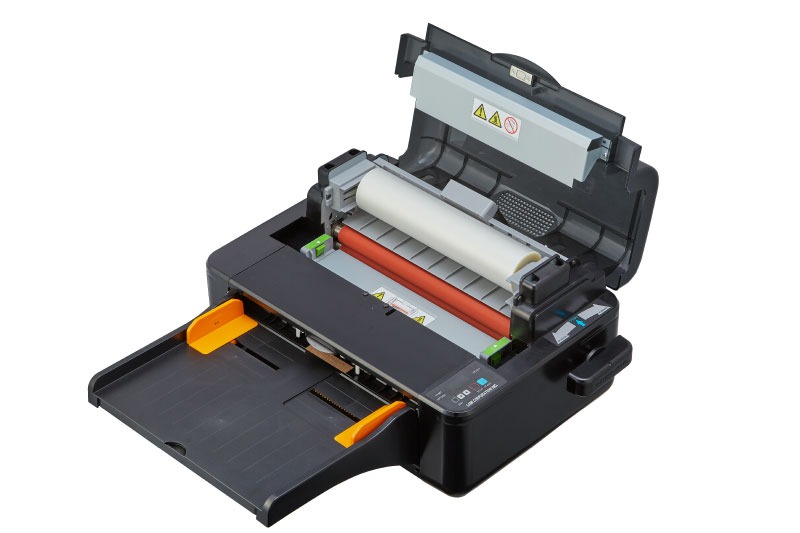

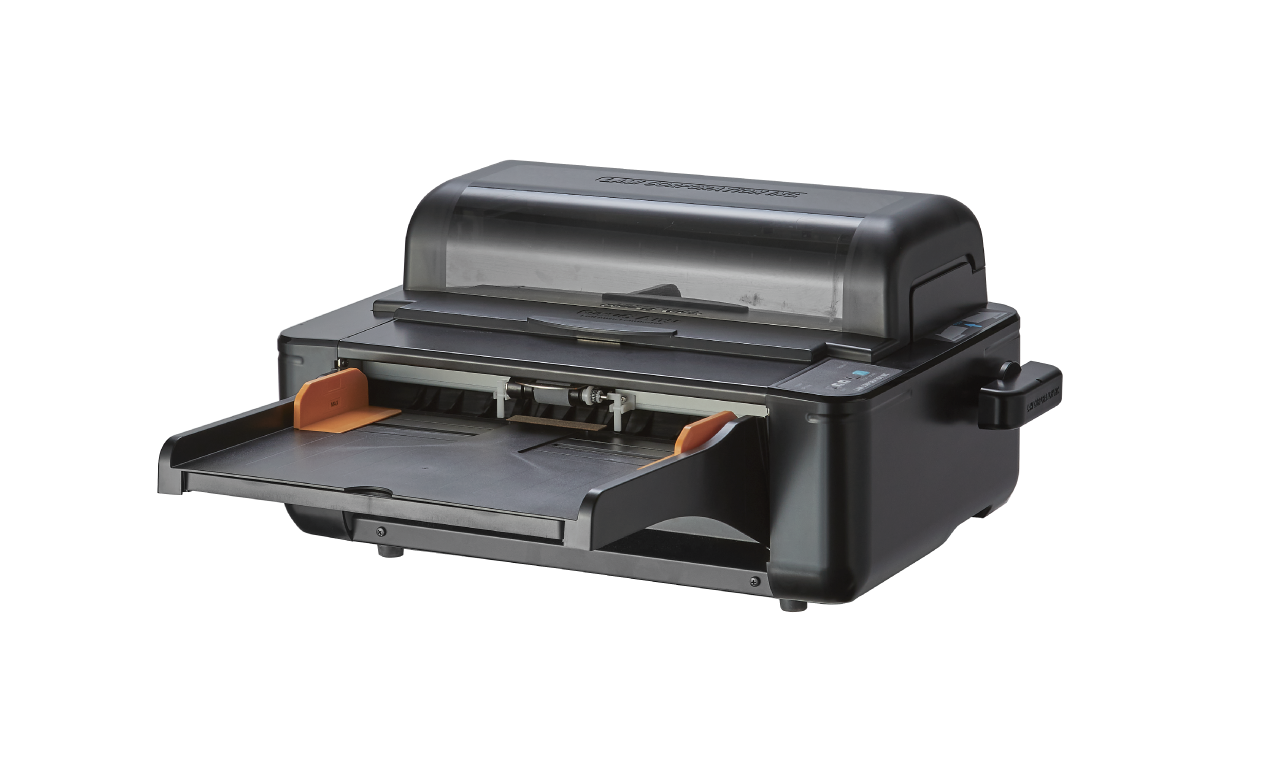

[ NEW ] Compact Fully Automatic Laminator
Comapct size that fits ANYwhere.
Easy film setting for ANYone.
Simple operation for ANY job required.
Features
Full-Auto Operated Laminator
Feeding, Laminating, Cutting & Trimming are fully automated.

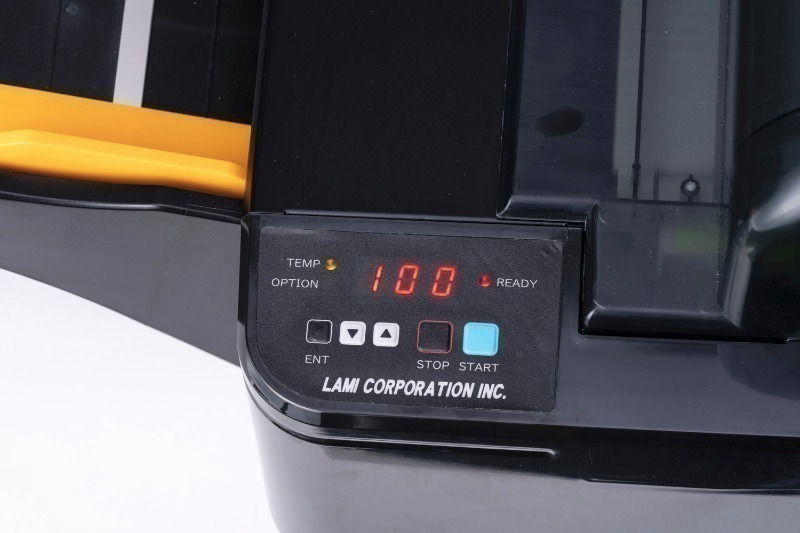

Press the start button and walk away.
Easy Film Setting
With the cassette-lamination method, the lamination film setting work has become much easier, also it helps lamination edges aligned.

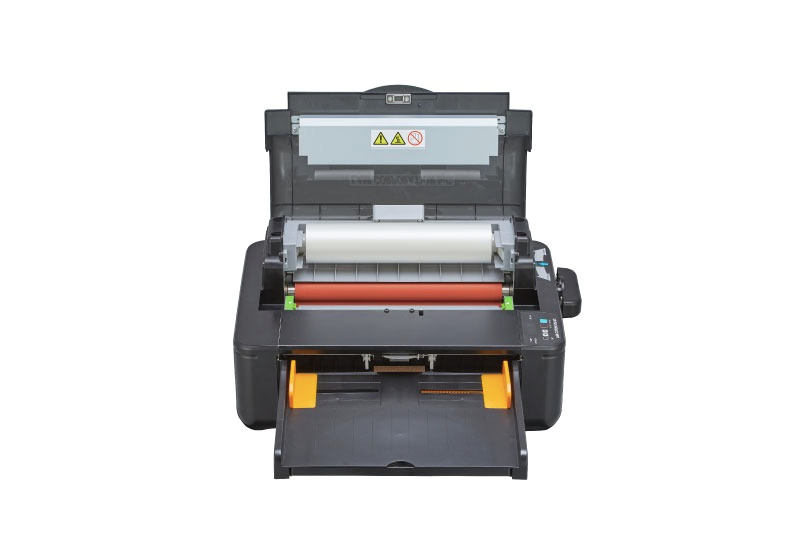

Easy Inside Cleaning
Possible to easily clean the inside by using the "Cover-Open Function".
Specifications
| Max. laminating width | A3(305mm) |
|---|---|
| Max.Substrate thickness | 50 / 80 / 100 / 125μ(exclusive film)*¹ |
| Max. speed | 750mm/min |
| Laminating temperature | 90℃~120℃(Variable type) |
| Power requirement / consumption | 【UL】 AC100V 【CE】 AC230V |
| External dimensions[W×D×H](mm) | 630*² ×525×280 |
| Weight | 25kg |
| Available paper thickness | 64 - 160g/㎡ |
| Warm-up time | 7minutes(approx)*³ |
| Size of paper used | 【UL】 Vertical: Ledger, Legal, Letter Horizontal : Letter 【CE】 Vertical SRA3, A3, A4, A5, B4, B5 Horizontal : A4, A5, B5 |
*1 Only authorized Revo Film can be used.
*2 Exclude output tray.
*3 Depends on the environment.
*UL … For the United States
*CE … For Europe, Asia, and other countries
Options

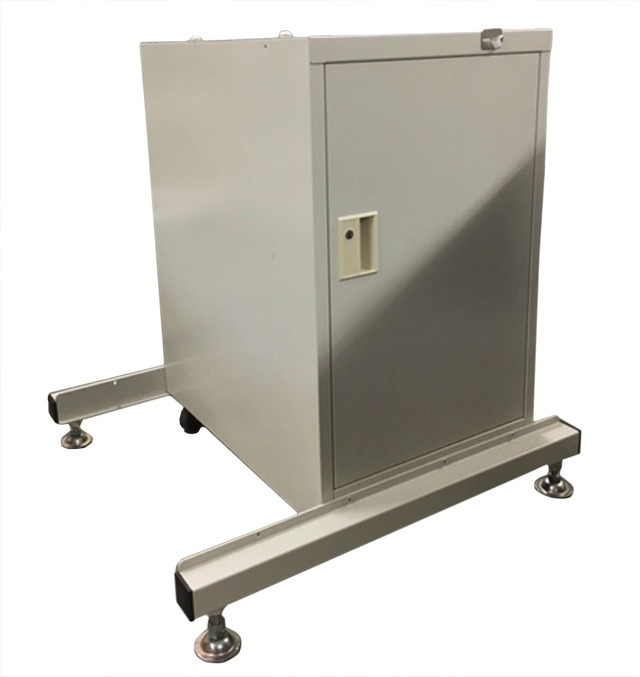

Exclusive Table
Easy to move with wheels.
Possible to store laminating film sinside
LAMI Revo Series
Product Line-Up
Revo-Flex
Most Flexible High Performance Model
[ NEW ] Fully Automatic Laminator with 4 Side Trim Function
- HOT
- ROLL
- Feeder
Width
320mm - Max.Thick
~150μ - Fully
Automatic
Revo-T14
High Performance Model
High-Speed, High-Quality Fully Automatic Laminator
- HOT
- ROLL
- Feeder
Width
330mm - Max.Thick
~125μ - Fully
Automatic
Revo-Office
Standard Model
Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
Revo-Any
Entry Model
[ NEW ] Compact Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
