Product Info
Series
LAMI Revo Series
Product
Revo-Flex
Price
- HOT
- ROLL
- Feeder
Width
320mm - Max.Thick
~150μ - Fully
Automatic
Download the Catalog
[ NEW ]

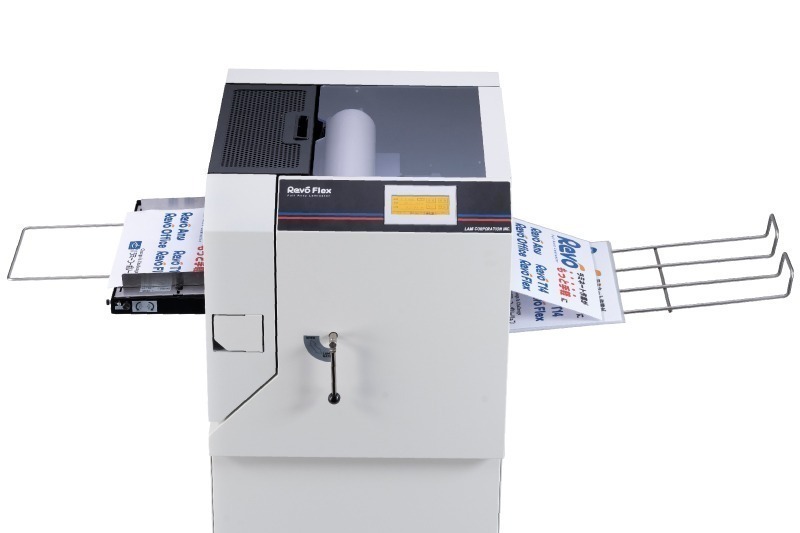

Fully Automatic Laminator
with 4 Side Trim Function
With Revo-Flex, you can easily select With/No Margin, also the various functions can
make documents more expressive and suitable for any situation.
Features
Full-Auto Operated Laminator
Feeding, Laminating, Cutting & Trimming are fully automated.
Press the start button and walk away.

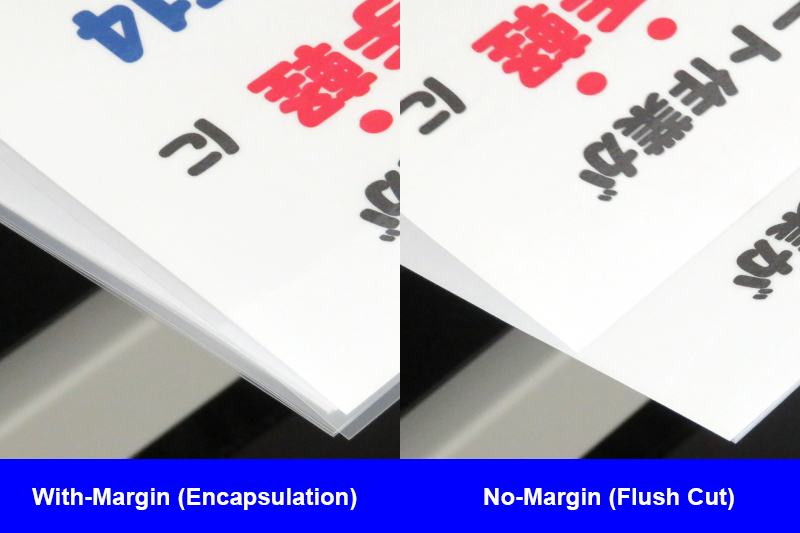

4 Side Trim Function
Long-awaited new feature of Revo Series.
Side slitters are equipped, it can be With-Margin or No-Margin lamination.
LCD Touch Panel
LCD touch panel makes any setting intuitive and easy.
Easy Inside Cleaning
Possible to easily clean the inside by using the "Cover-Open Function".
Specifications
| Max. laminating width | 320mm |
|---|---|
| Max.Substrate thickness | 38/80/100/150μ(exclusive film)*¹ |
| Max. speed | 700～2,000mm/min (variable type) |
| Laminating temperature | OFF、80～140℃ |
| Power requirement / consumption | 【UL】AC100V 50/60Hz 1000W |
| External dimensions[W×D×H](mm) | 1,300 × 610 × 1,080 (With stand, feeder tray, extension tray, stacker) |
| Weight | 70kg |
| Feeder tray capacity | 200 Sheets (copy paper) |
| Available paper thickness | 64 - 240g/m2 |
| Warm-up time | 5minutes(approx.)*² |
| Size of paper used | A3/A4/A5/B4/B5/Letter/Digital |
| Finished size*³ | With-Margin A3：303×426mm A4：303×216mm B4：263×370mm B5：263×188mm A5：216×154mm No-Margin A3：294×417mm A4：294×207mm B4：254×361mm B5：254×179mm A5：207×145mm |
*1 Only authorized Revo Film can be used.
*2 When set to 100℃(212℉) . Depends on the environment.
*3 Error range: ±0.5mm (W,H)
