Product Info
Series
LAMI Revo Series
Product
Revo-T14
Price
- HOT
- ROLL
- Feeder
Width
330mm - Max.Thick
~125μ - Fully
Automatic
Download the Catalog

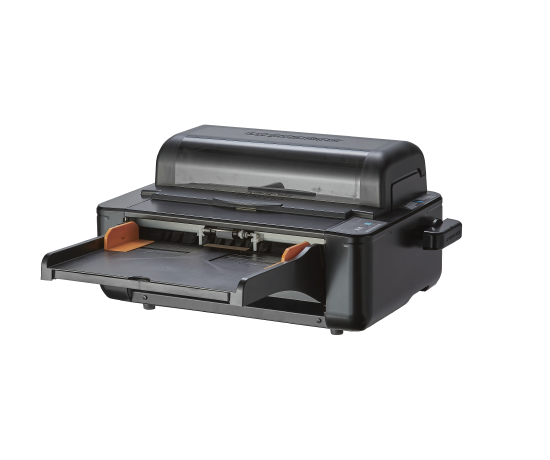

High-Speed, High-Quality Fully Automatic Laminator
Achieve Outstanding Speed And Compactness.
Features
Full-Auto Operated Laminator
Paper feeding, laminating and cutting can be fully automatic with this laminator. All you need to do is setting paper on the tray and pressing the start button!
Overwhelming Productivity
Revo-T14 is able to laminate 100 sheets of A4 size within 14 minutes.
Easy Inside Cleaning
Possible to easily clean the inside by using the "Cover-Open Function".
Specifications
| Max. laminating width | A3 (305mm) Feeder max width 330mm |
|---|---|
| Max.Substrate thickness | 50μ / 80μ / 100μ / 125μ(exclusive film) |
| Max. speed | 1.6m/min(fixed) |
| Laminating temperature | 100℃(Variable type) |
| Power requirement / consumption | 【UL】AC 120V / 1,200 W【CE】AC 230V / 1,150 W |
| External dimensions[W×D×H](mm) | 530*¹ x 900 x 420 |
| Weight | 35kg |
| Warm-up time | About 5miniutes.*² |
| Size of paper used | 【UL】Vertical: Ledger, Legal, Letter Horizontal : Letter 【CE】VerticalA3, A4, B4 Horizontal : A4, B5, A5 |
*¹ Including [UP&DNWN lever].
*² differs according to the environment.
*UL … For the United States
*CE … For Europe, Asia, and other countries
* The photo is a sample image.
Options
Exclusive Table
Capable of accommodating the film to the inside.
Others

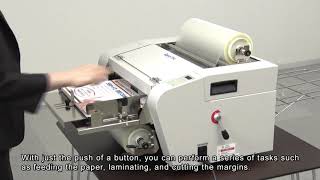

Video
RevoT14
LAMI Revo Series
Product Line-Up
Revo-Flex
Most Flexible High Performance Model
[ NEW ] Fully Automatic Laminator with 4 Side Trim Function
- HOT
- ROLL
- Feeder
Width
320mm - Max.Thick
~150μ - Fully
Automatic
Revo-T14
High Performance Model
High-Speed, High-Quality Fully Automatic Laminator
- HOT
- ROLL
- Feeder
Width
330mm - Max.Thick
~125μ - Fully
Automatic
Revo-Office
Standard Model
Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
Revo-Any
Entry Model
[ NEW ] Compact Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
