Product Info
Series
LAMI Revo Series
Product
Revo-Office
Price
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
Download the Catalog
Fully Automatic Laminator
The industry's first to adopt a "Cassette Laminating System". (PAT.P)
Features
Full-Auto Operated Laminator
Revo-Office is an economical fully automatic laminator.
It can do everything in the laminating process automatically, from feeding papers to cutting.
Easy Film Setting
Compared to regular automatic laminator, film setting of Revo-Office is extremely EASY!
Easy Inside Cleaning
Possible to easily clean the inside by using the "Cover-Open Function".
Specifications
| Max. laminating width | A3(305mm) |
|---|---|
| Max.Substrate thickness | 50 / 80 / 100 / 125μ(exclusive film) |
| Max. speed | 1.0m/min (Fixed) |
| Laminating temperature | 100℃(Variable type) |
| Power requirement / consumption | 【UL】 AC120V / 1,200W 【CE】 AC230V / 1,150W |
| External dimensions[W×D×H](mm) | 680*¹×506×337 |
| Weight | 30kg |
| Warm-up time | 5minutes(approx) |
| Size of paper used | 【UL】Vertical: Ledger, Legal, Letter Horizontal : Letter 【CE】VerticalA3, A4, B4, A5 Horizontal : A4, B5 |
*¹ Exclude output tray
*UL … For the United States
*CE … For Europe, Asia, and other countries
Options
Exclusive Table
Capable of accommodating the film to the inside.
Film Cassette
Extra cassette means less film waste. Use another cassette for different width of films, or use one for Gloss and one for Matte films.
Others

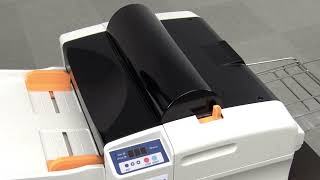

Video
Big Difference between manual laminating and Revo!
LAMI Revo Series
Product Line-Up
Revo-Flex
Most Flexible High Performance Model
[ NEW ] Fully Automatic Laminator with 4 Side Trim Function
- HOT
- ROLL
- Feeder
Width
320mm - Max.Thick
~150μ - Fully
Automatic
Revo-T14
High Performance Model
High-Speed, High-Quality Fully Automatic Laminator
- HOT
- ROLL
- Feeder
Width
330mm - Max.Thick
~125μ - Fully
Automatic
Revo-Office
Standard Model
Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
Revo-Any
Entry Model
[ NEW ] Compact Fully Automatic Laminator
- HOT
- ROLL
- Max.Wide
A3 - Max.Thick
~125μ - Fully
Automatic
