Product Info
Series
LAMI Cold Series
Product
Camellia1600CL II
Price
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Electric
UP&DOWN
Download the Catalog
Multi-functional cold laminator that allows 1,600mm laminating.
Standard laminator with electric control, heat-assist function, and space-saving design.
Features
Space Saving Design
This improved model can be installed in the same space as our previous model's 1,400mm laminator, while achieving 1,600mm width laminating.
UP & DOWN Easily By Electcal Roller
Easy electric control of the laminating rollers by pressing the buttons.
Laminate Efficiently With Re-winding
The winding device to roll up laminated signs is included as a standard equipment.
Specifications
| Max. laminating width | 1,600mm |
|---|---|
| Max.Substrate thickness | 8mm |
| Max. speed | ~6.0m/min |
| Laminating temperature | 40℃(Fixed) *when using heater. |
| Power requirement / consumption | 【PSE】AC100V / 230V |
| External dimensions[W×D×H](mm) | 1,945 x 516 x 1,100*¹ |
| Weight | 150kg |
| Roller Clearance | Electric 9 settings |
| Standard Attachment | Media holder shaft / Product winding device / Foot switch |
*¹ including protrusions
* This product has obtained PSE mark only.

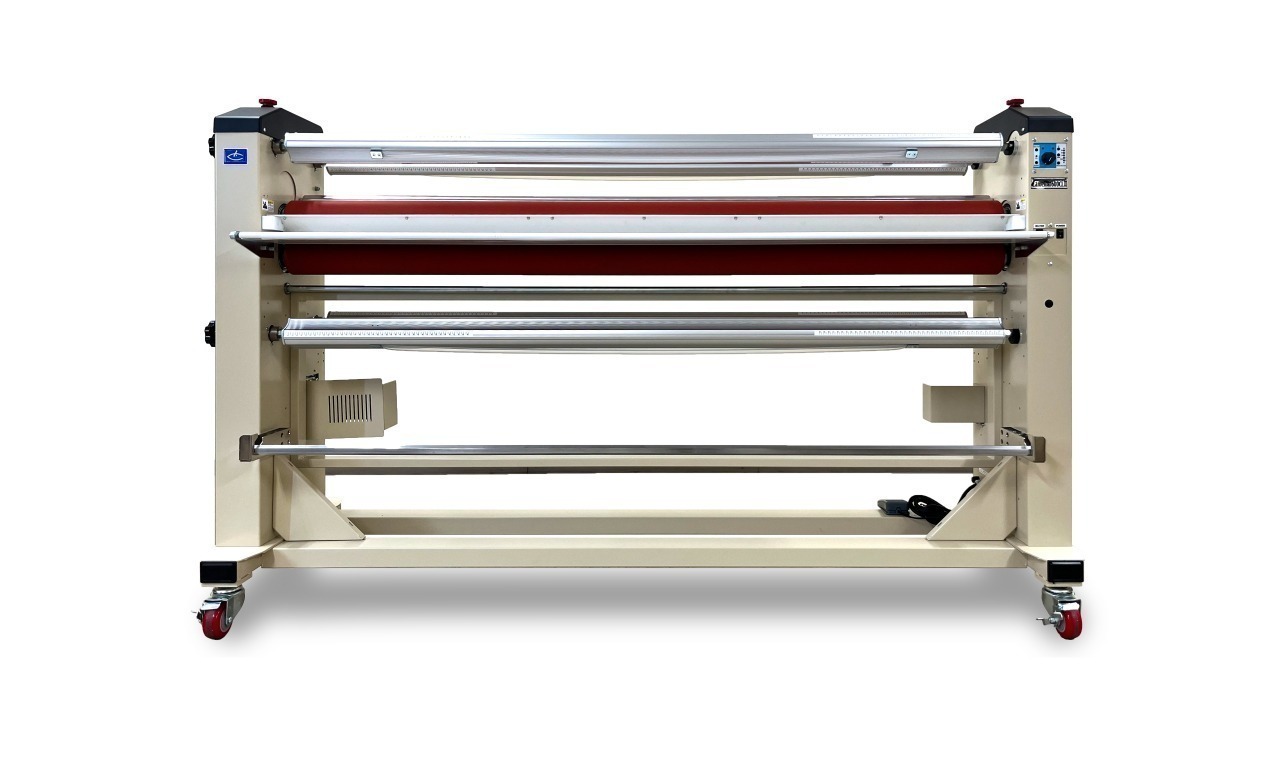

* The photo is a sample image.
Options
Extra film shaft
Extra film shaft means saving your film-changing time. You can improve the convenience by having shafts for different film types, such as Gloss/ Matte, Thick/Thin, PP/PVC/PET films.
LAMI Cold Series
Product Line-Up
Azalea1600C II
Entry Model
Allows 1,600mm width laminating despite its space-saving design.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Manual
UP&DOWN
Camellia1600CL II
Standard Model
Multi-functional cold laminator that allows 1,600mm laminating.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Electric
UP&DOWN
