Product Info
Series
LAMI Cold Series
Product
Camellia1600CL
Price
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Electric
UP&DOWN
Download the Catalog

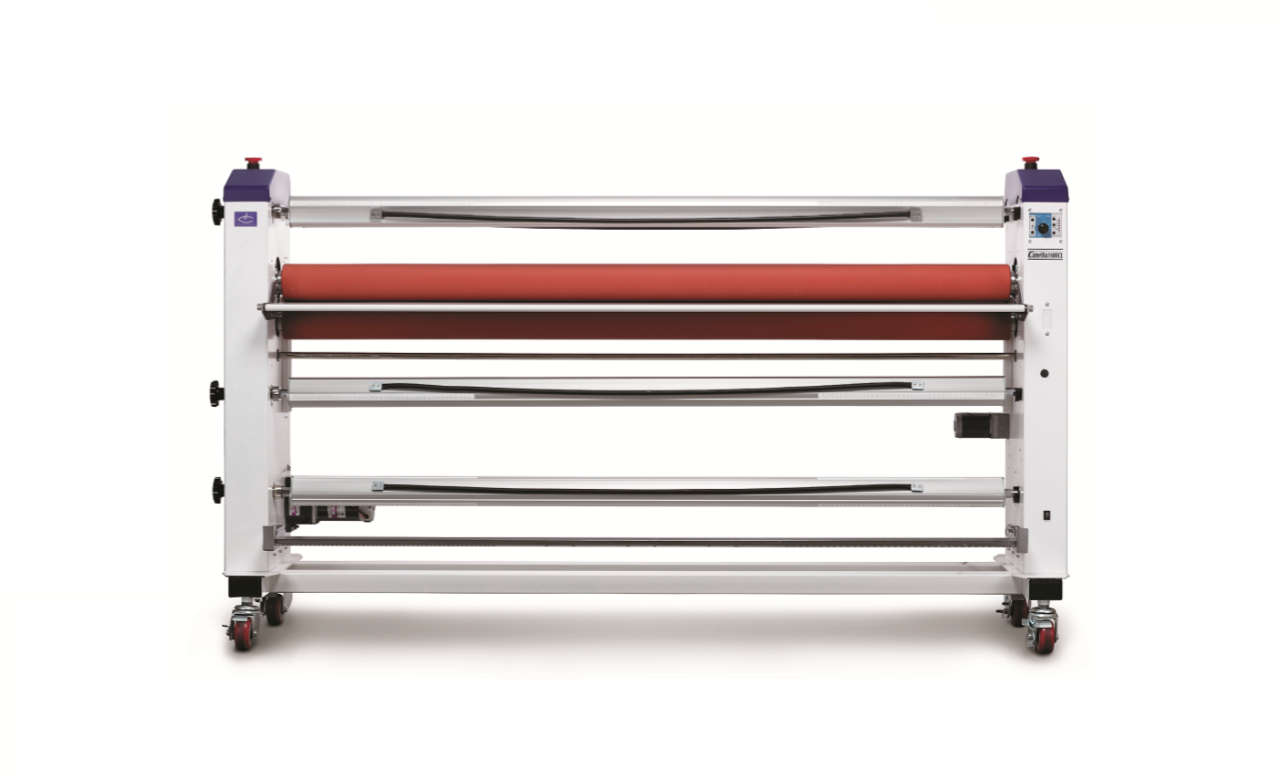

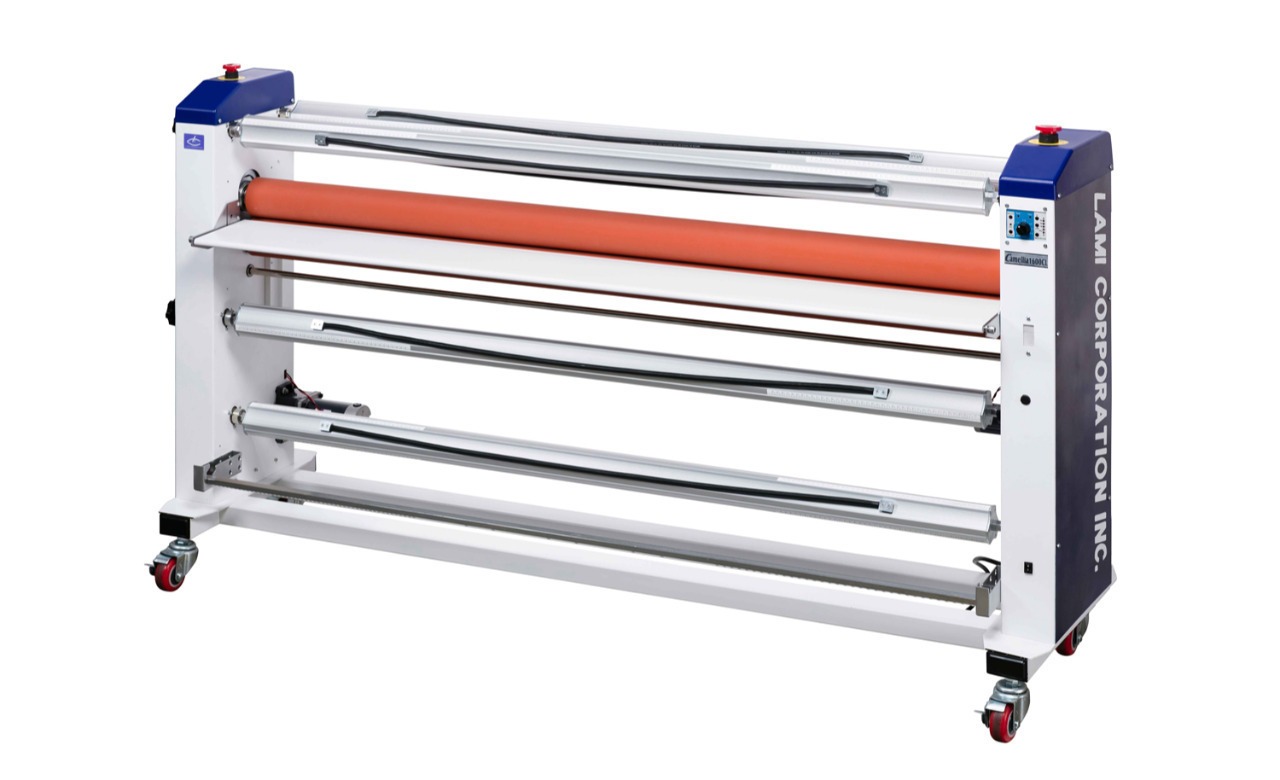

Multi-functional cold laminator that allows 1,600mm laminating.
Standard laminator with electric control, heat-assist function, and space-saving design.
Features

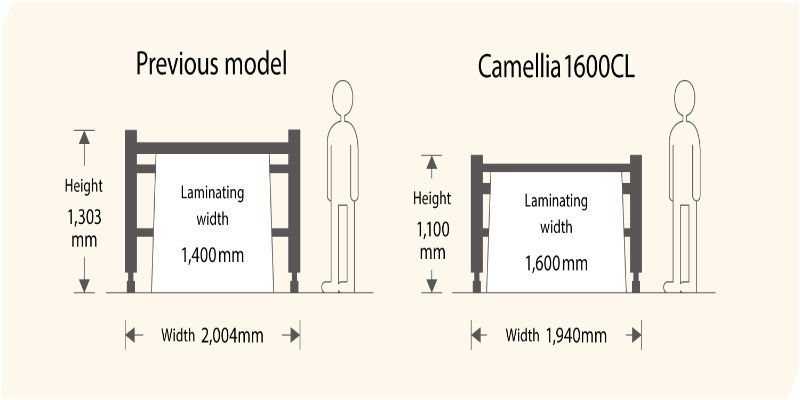

Space Saving Design
This improved model can be installed in the same space as our previous model's 1400mm laminator, while achieving 1600mm width laminating.

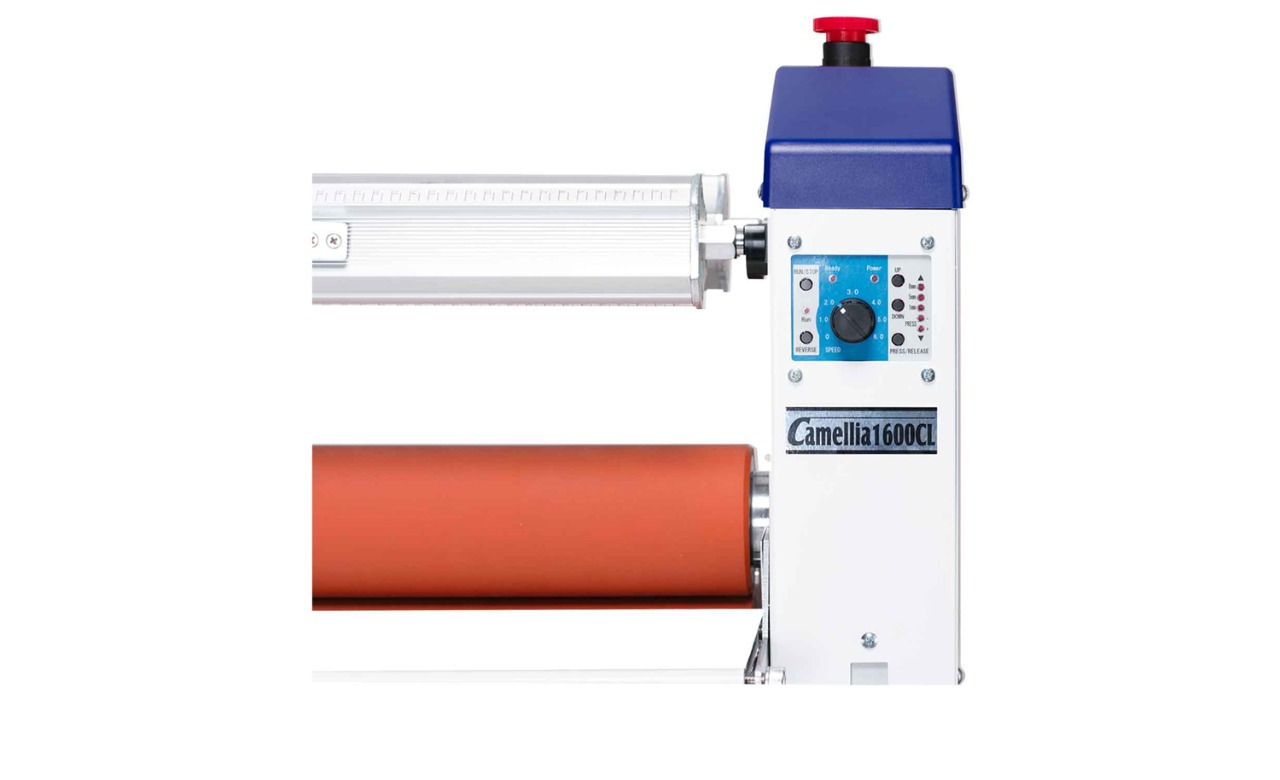

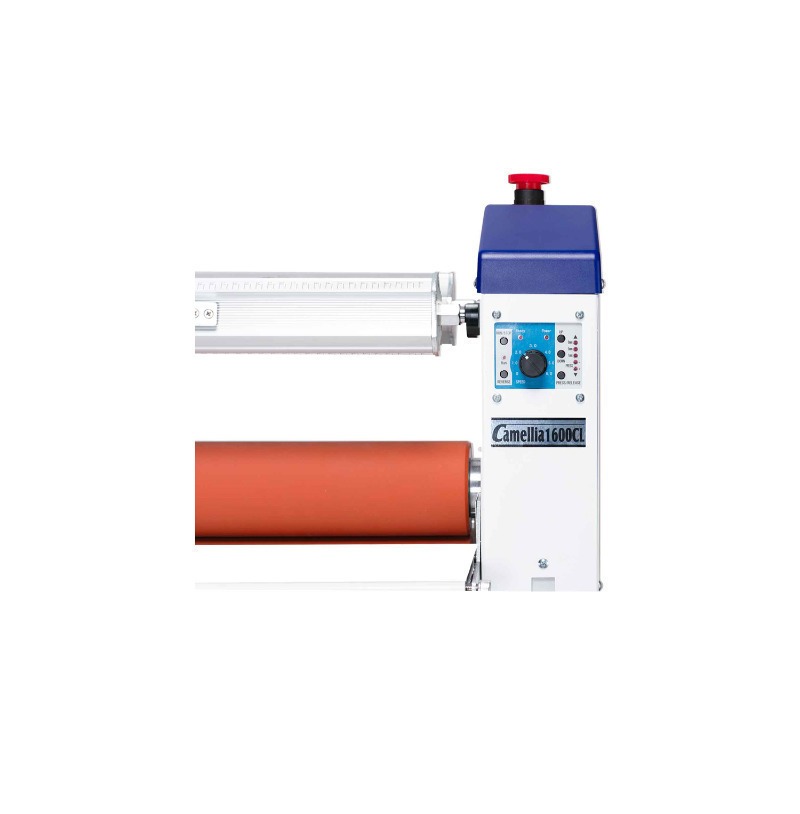

UP & DOWN Easily By Electcal Roller
Easy electric control of the laminating rollers by pressing the buttons.

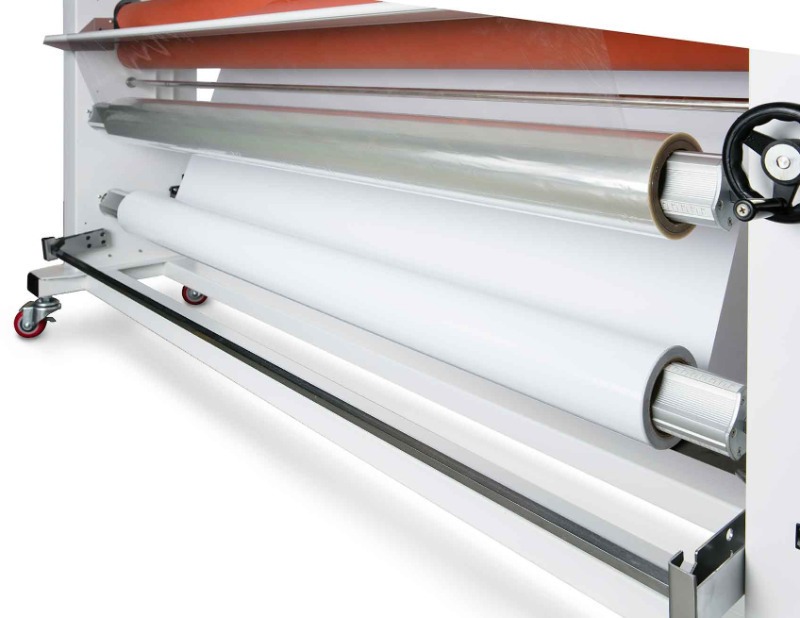

Laminate Efficiently With Re-winding
The winding device to roll up laminated signs is included as a standard equipment, and it is attached in front so you can easily check the finish.
Specifications
| Max. laminating width | 1,600mm |
|---|---|
| Max.Substrate thickness | 8mm |
| Max. speed | ~6.0m/min |
| Laminating temperature | 40℃(Fixed) *when using heater. |
| Power requirement / consumption | 【CE】AC230V / 1,100W |
| External dimensions[W×D×H](mm) | 1,945 x 516 x 1,100*¹ |
| Weight | 150kg |
| Roller Clearance | Electric 9 settings |
| Standard Attachment | Media holder shaft / Product winding device / Foot switch |
*¹ including protrusions
* CE … For Europe, Asia, and other countries
* The photo is a sample image.
Options

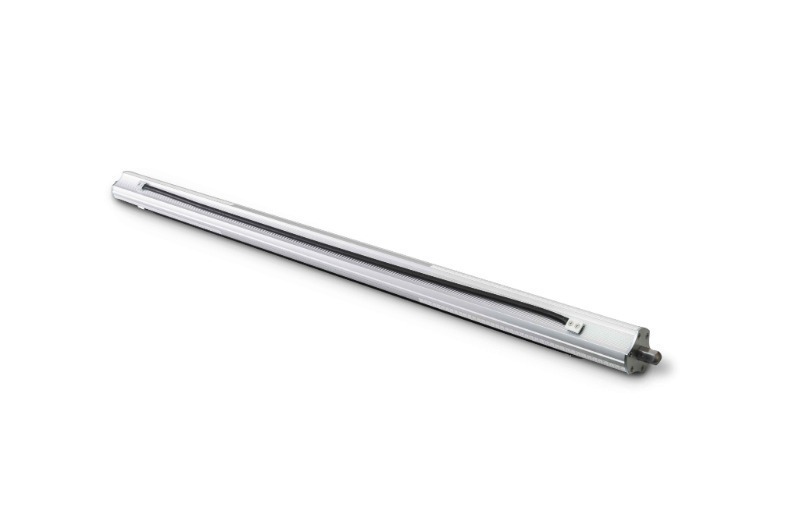

Extra film shaft
Extra film shaft means saving your film-changing time. You can improve the convenience by having shafts for different film types, such as Gloss/ Matte, Thick/Thin, PP/PVC/PET films.
LAMI Cold Series
Product Line-Up
Azalea1600C II
Entry Model
Allows 1,600mm width laminating despite its space-saving design.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Manual
UP&DOWN
Camellia1600CL II
Standard Model
Multi-functional cold laminator that allows 1,600mm laminating.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Electric
UP&DOWN
