Product Info
Series
LAMI Cold Series
Product

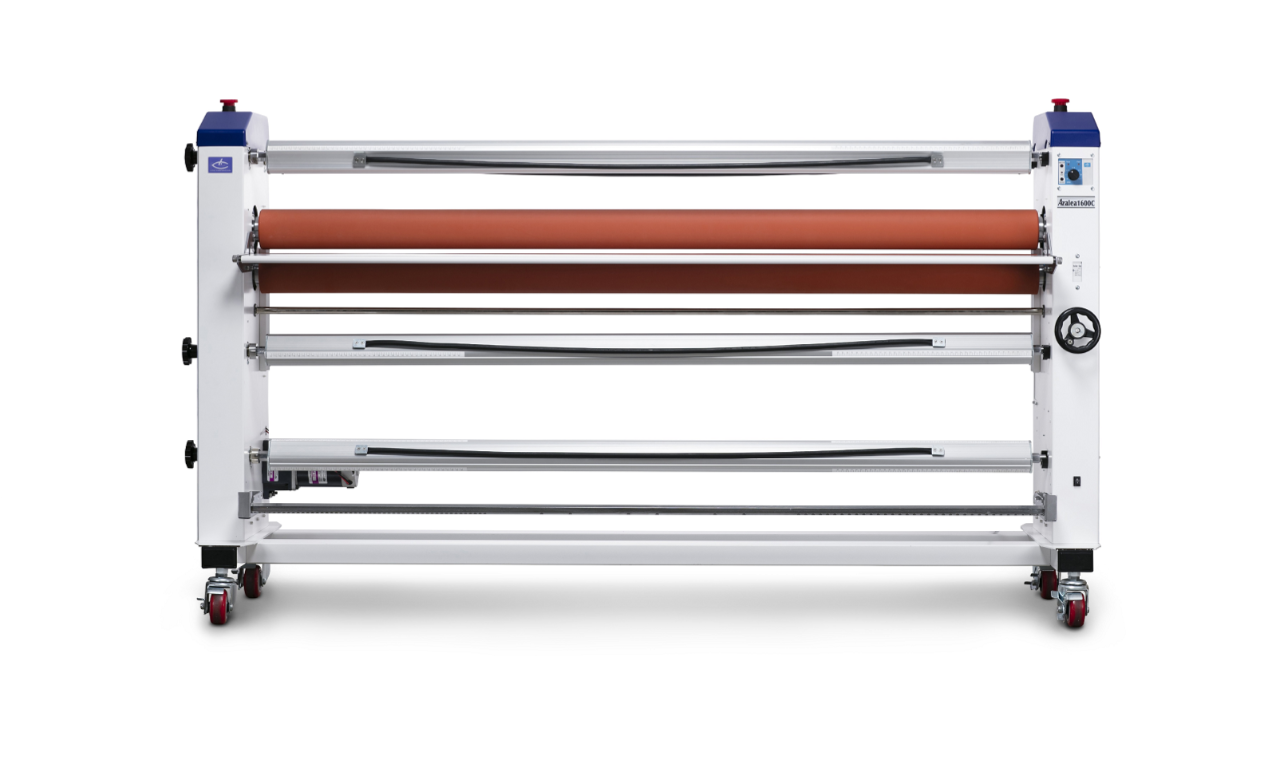

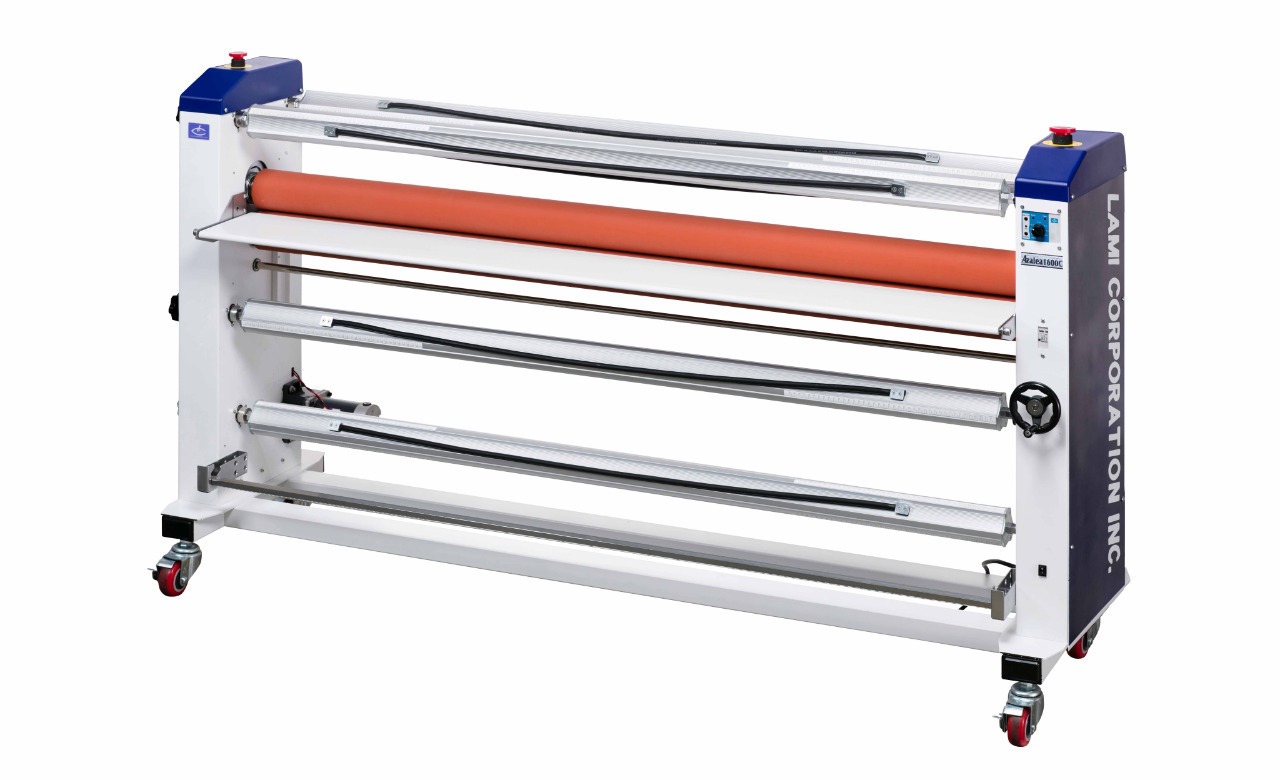

Azalea1600CL
Price
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Manual
UP&DOWN
Download the Catalog
Allows 1,600mm width laminating despite its space-saving design.
The entry model with space-saving design and simple operation.
Features

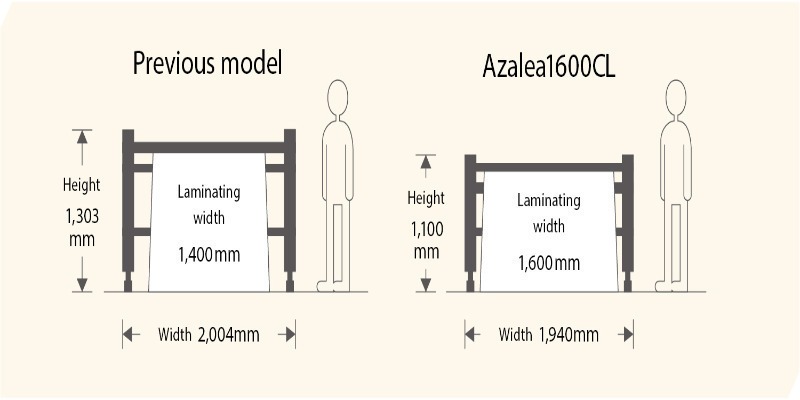

Space Saving Design
This improved model can be installed in the same space as our previous model's 1400mm laminator, while achieving 1600mm width laminating.

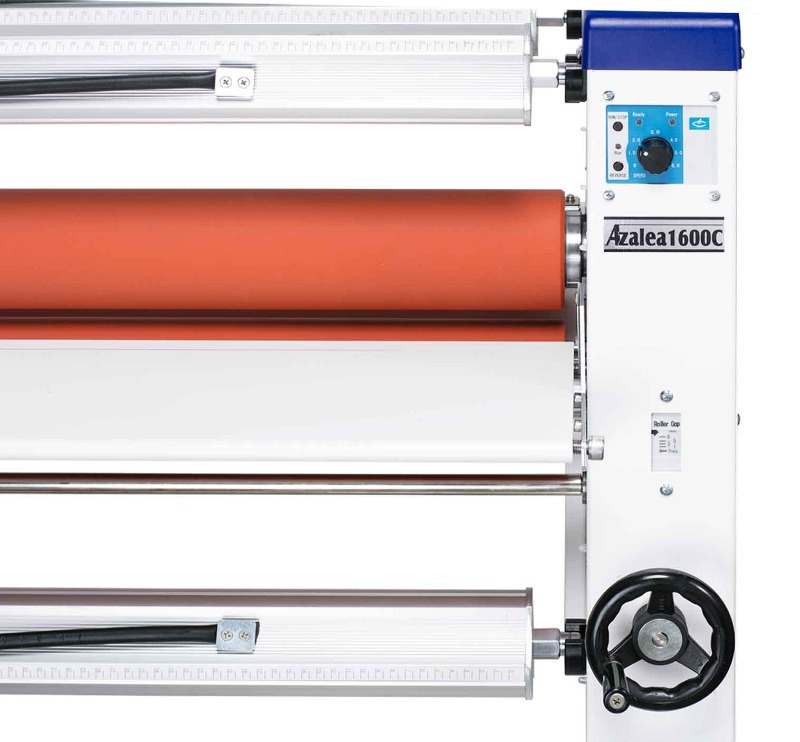

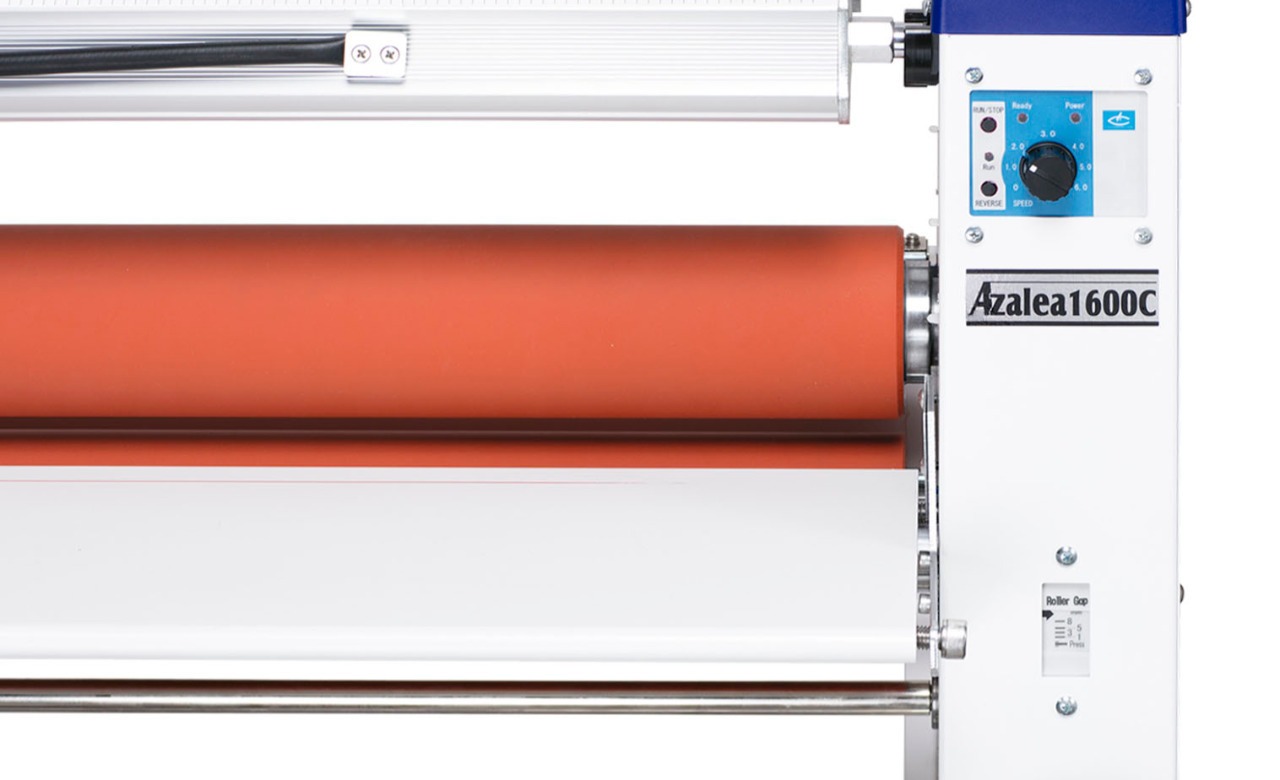

Stepless Pressure Adjustment
The pressure of the laminating roller can be adjusted steplessly with the handle-type-preset mechanism.

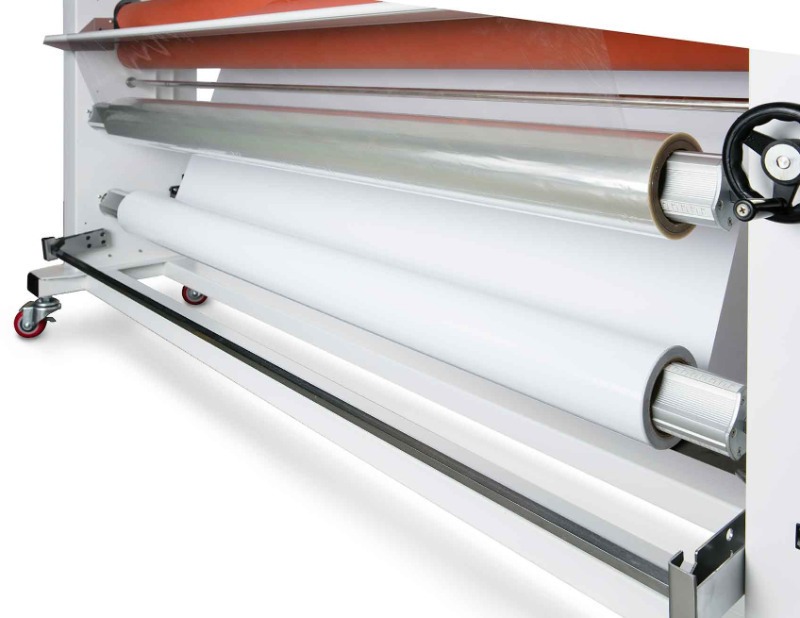

Laminate Efficiently With Re-winding Device
The winding device to roll up laminated signs is included as a standard equipment, and it is attached in front so you can easily check the finish.
Specifications
| Max. laminating width | 1,600mm |
|---|---|
| Max.Substrate thickness | 8mm |
| Max. speed | ~6.0m/min |
| Laminating temperature | 40℃(fixed) *when using heater |
| Power requirement / consumption | 【CE】AC230V / 1,100W |
| External dimensions[W×D×H](mm) | 1,945 x 516 x 1,100*¹ |
| Weight | 150kg |
| Roller Clearance | 0 to 8mm |
| Standard Attachment | Media holder shaft / Product winding device / Foot switch |
*¹ including protrusions
* CE … For Europe, Asia, and other countries
* The photo is a sample image.
Options

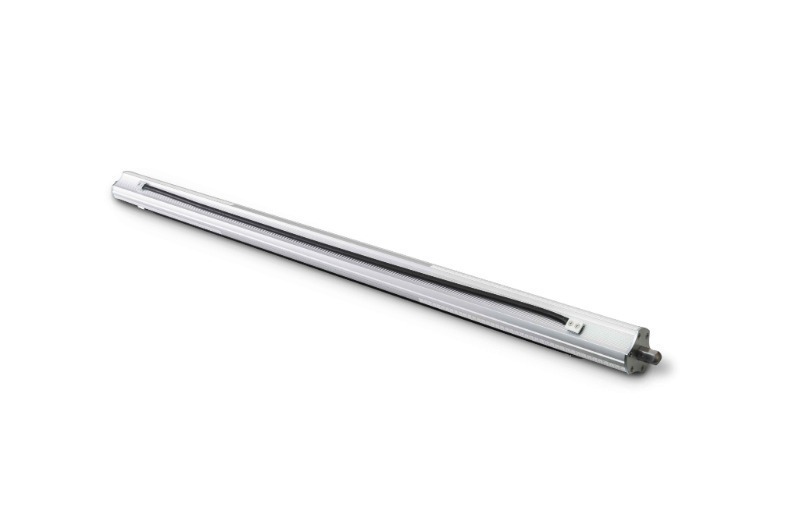

Extra film shaft
Extra film shaft means saving your film-changing time. You can improve the convenience by having shafts for different film types, such as Gloss/ Matte, Thick/Thin, PP/PVC/PET films.
LAMI Cold Series
Product Line-Up
Azalea1600CL
Entry Model
Allows 1,600mm width laminating despite its space-saving design.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Manual
UP&DOWN
Camellia1600CL
Standard Model
Multi-functional cold laminator that allows 1,600mm laminating.
- Heat
Assist - ROLL
- Max.Wide
1,600mm - Max.Thick
8mm - Electric
UP&DOWN
